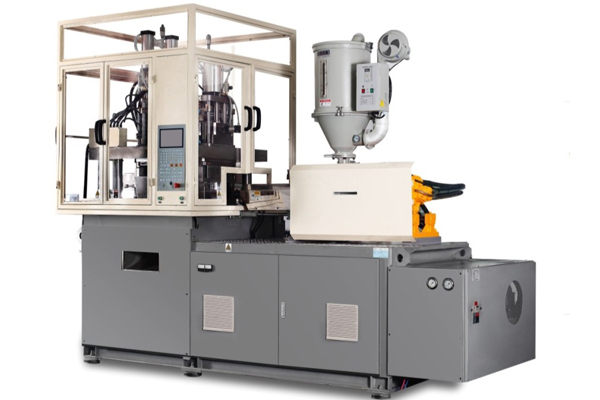

Injection Stretch Blow Molding Machine (4 stations)
Brief Introduction
GZ-SS400-FI 4 stations stretch blow moulding machine has 4 stations of injection moulding, temperature controlling, stretching & blowing, and product demoulding. The products get one-step formed from raw material to finished products.
Application
Stretch blow molding machinery is used for producing many kinds of containers, like IV solution bottle, oral liquid bottle, liquid medicine bottle, tablet bottle, capsule bottle, LED lamp cover, cosmetics bottle, detergent bottle, collutory bottle, milk bottle, condiment container, salad dressing container, drinking water bottle, etc.
Main Features
1. Need no heating, reducing molding cycle and energy consumption.
2. Avoid possible pollution from preform station to blow station.
3. Easy replacement of the mold.
4. Apply to many kinds of materials: PC, PET, PP, HDPE, PS, etc.
5. Apply to different container shapes: round, non-round, wild-mouth bottle, oval.
Technical Parameters of 4 Stations Stretch Blow Moulding Machine
Mould Cavities
GZ-SS400-FI 4 stations stretch blow moulding machine has 4 stations of injection moulding, temperature controlling, stretching & blowing, and product demoulding. The products get one-step formed from raw material to finished products.
Application
Stretch blow molding machinery is used for producing many kinds of containers, like IV solution bottle, oral liquid bottle, liquid medicine bottle, tablet bottle, capsule bottle, LED lamp cover, cosmetics bottle, detergent bottle, collutory bottle, milk bottle, condiment container, salad dressing container, drinking water bottle, etc.
Main Features
1. Need no heating, reducing molding cycle and energy consumption.
2. Avoid possible pollution from preform station to blow station.
3. Easy replacement of the mold.
4. Apply to many kinds of materials: PC, PET, PP, HDPE, PS, etc.
5. Apply to different container shapes: round, non-round, wild-mouth bottle, oval.
Technical Parameters of 4 Stations Stretch Blow Moulding Machine
Model | GZ-SS400-FI | |
Name | Unit | Data |
Screw diameter | mm | 40 |
Injection capacity | g | 207 |
Machine weight | Kg | 5500 |
Max. injection speed | mm/s | 83.8 |
Screw stroke | mm | 165 |
Screw rotation speed | r/min | 0 to 180 |
Injection Clamping Force | KN | 400 |
Blow clamping Force | KN | 80 |
Blow air Pressure | Kgf/cm2 | 35 |
Working pressure | Kgf/cm2 | 8 |
Oil pump motor power | kW | 18.5 |
Heating power (not includes mould) | kW | 13 |
Pressure of oil hydraulic system | MPa | 16 |
Oil Tank volume | L | 400 |
Overall size(L×W×H) | m | 3.75 × 1.43 × 3.15 |
Mould Cavities
Model | GZ-SS400-FI | ||||
Name | Cavities | Max. Capacity | Bottleneck diameter | Bottle body diameter | Bottle |
Unit | pc | L | mm | mm | mm |
Data | 1 | 2.5 | 63 | 115 | 250 |
2 | 1.5 | 50 | 100 | 250 | |
3 | 0.8 | 42 | 80 | 250 | |
4 | 0.6 | 32 | 70 | 250 | |
5 | 0.4 | 28 | 55 | 250 | |
6 | 0.2 | 25 | 45 | 250 |
