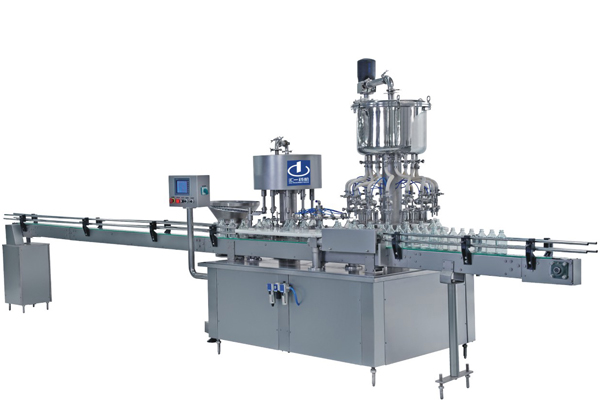

Glass Bottle Filling and Stoppering Machine
Description
Glass bottle filling stoppering machine is mainly used for filling, stoppering IV solution glass bottle of 50ml to 500ml and other sizes in room temperature and high temperature. Filling and stoppering equipment can be used for glass bottle of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other medical liquids (like tincture liquid).
Main Features
1. The filling part adopts the Germany GEMU valve filling, high precision.
2. No bottle no filling.
3. No mandatory friction of mechanical parts when filling, no particulate pollution, meeting GMP requirements.
4. Easy operation, all settings can be set directly from HMI.
5. Electronic control system adopts PLC and frequency conversion regulation technology. Start and stop very stably, easy to change specifications.
6. CIP/SIP, easy to clean.
7. Vacuum stopper suction and mechanical positioning, stopper is conveyed to stoppering station after accurate positioning, high qualified rate.
8. Screw of bottle input adopts mobile structure, which can easily replace different screw specifications and infusion bottles size.
9. Stoppering immediately after filling, reducing possible pollution caused by long-distance delivery.
Technical Parameters of Glass Bottle Filling Stoppering Machine
Glass bottle filling stoppering machine is mainly used for filling, stoppering IV solution glass bottle of 50ml to 500ml and other sizes in room temperature and high temperature. Filling and stoppering equipment can be used for glass bottle of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other medical liquids (like tincture liquid).
Main Features
1. The filling part adopts the Germany GEMU valve filling, high precision.
2. No bottle no filling.
3. No mandatory friction of mechanical parts when filling, no particulate pollution, meeting GMP requirements.
4. Easy operation, all settings can be set directly from HMI.
5. Electronic control system adopts PLC and frequency conversion regulation technology. Start and stop very stably, easy to change specifications.
6. CIP/SIP, easy to clean.
7. Vacuum stopper suction and mechanical positioning, stopper is conveyed to stoppering station after accurate positioning, high qualified rate.
8. Screw of bottle input adopts mobile structure, which can easily replace different screw specifications and infusion bottles size.
9. Stoppering immediately after filling, reducing possible pollution caused by long-distance delivery.
Technical Parameters of Glass Bottle Filling Stoppering Machine
Main Items | Main Contents | |||||
Model | GCS6/6 | GFS10/10 | GCS16 | GFS24/10 | GFS36/20 | GFS48/20 |
Applied Bottle Size | 50ml, 100ml, 250ml, 500ml | |||||
Capacity | 30-60 Bottles/min | 40-100 Bottles/min | 60-150 Bottles/min | 120-250 Bottles/min | 200-350 Bottles/min | 350-500 Bottles/min |
Filling Heads | 6 | 10 | 16 | 24 | 36 | 48 |
Stoppering Heads | 6 | 10 | 10 | 10 | 20 | 20 |
Metering Error | ±1.5%(standard container) | |||||
Electric Capacity | 4.0kW | 4.0kW | 4.0kW | 4.0kW | 4.0kW | 4.0kW |
Compressed Air Consumption | 0.5m³/h (0.6MPa) | 0.8m³/h (0.6MPa) | 1.5m³/h (0.6MPa) | 2.0m³/h (0.6MPa) | 3.2m³/h (0.6MPa) | 4.5m³/h (0.6MPa) |
Overall Size(mm) | 1250 × 1050 × 2350 | 1300 × 1100 × 2350 | 1600 × 1250 × 2350 | 1750 × 1530 × 2350 | 2330 × 1900 × 2350 | 2580 × 2300 × 2350 |
