Basic Unit
Vessel: Total volume: 5L, working volume: 3.5L. Special borosilicate glass vessel with flat stainless steel (316L)top-plate and bottom end. Autoclavable.
Stirrer: Drive with AC motor, speed adjustable. Magnetic drive from bottom. Solid stirrer shaft with 2 pieces of 6-blade disk impeller and 1 set of foam breaker. Rotate speed range: 50-1000rpm.
Aeration: With stainless steel ring sparger in the vessel and silica gel tube and air filter outside.
Thermal circuit: Electrical heating unit under the bottom end of vessel; piping and all required valves to be connected to cooling water supply.
Peristaltic pumps: 4 peristaltic pumps each assignable to function for acid/alkali, anti-foam and nutrient feeding. Each pump including perforation needles and silicone hose. Automatic or manual control.
Control system of Fermentation Unit: Various controller for choose.Details: BIOTECH-7000, BIOTECH-9000

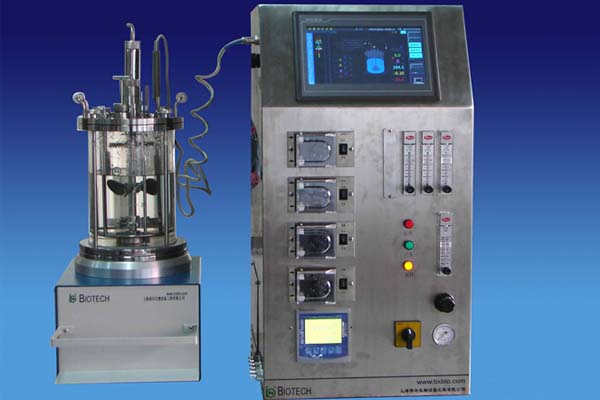

Optional for 5BGC Offline Sterilized Fermenter
1. Auto detect and auto control of air mass flow, liquid level
2. Detect of exhaust O2 and CO2
3. Additional pump for feed
4. Weight system for vessel and feeding
5. Other customized function
