Product List
Labeling Machine
Description

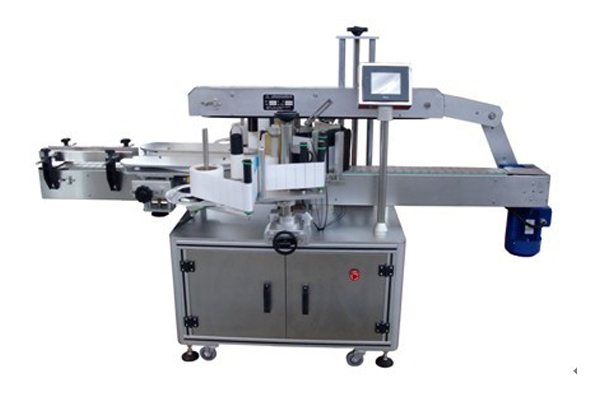

TZ linear labeling machinery is used for cylindrical bottle body labeling in pharmaceutical, food, light industry, chemical industry, etc.
Main Features
1. Labeling at correct position, no bubble
2. No delivery to sticker, no taking the sticker, no batch number printing (only for TZ200), no labeling and other protection when no bottle.
Technical Parameters of Linear Labeling Machine
TZ linear labeling machinery is used for cylindrical bottle body labeling in pharmaceutical, food, light industry, chemical industry, etc.
Main Features
1. Labeling at correct position, no bubble
2. No delivery to sticker, no taking the sticker, no batch number printing (only for TZ200), no labeling and other protection when no bottle.
Technical Parameters of Linear Labeling Machine
Type | TZ200 | TZ300 | TZ450 |
Specification | 140 × 120(W×H)Max | ||
Production Capacity | 60-200 bottles/min | 100-300 bottles/min | 200-450 bottles/min |
Label Feeding Heads | 1 | 2 | 3 |
Electric Capacity | 2.0kW | 2.0kW | 3.0kW |
Overall Size(mm³) | 2800 × 950 × 1100 | 2800 × 950 × 1100 | 3000 × 1110 × 1000 |
Net Weight | 800kg | 800kg | 1000kg |
