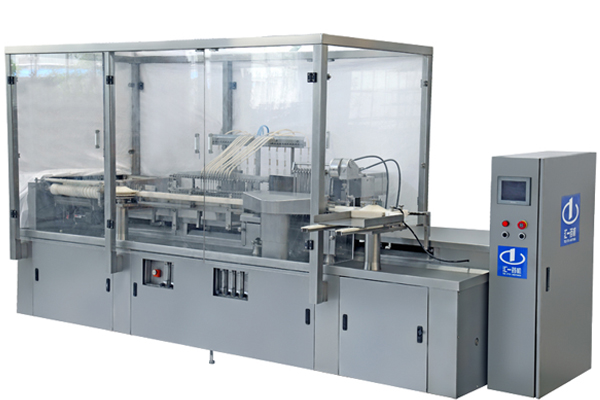

Ampoule Filling Sealing Machine
Description
AGF Ampoule filling sealing machine is mainly used for filling and sealing of pharmaceutical industry B type 1 to 20ml ampoules. Ampoule production line can automatically finish the whole production process: auger feeding, front nitrogen charging (or gas charging), filling, rear nitrogen charging, preheating, sealing and outputting.
Features
1. Auto counting
2. Full servo driven+ceramic pump filling, no bottle no filling
3. S/S Class A laminar flow and protection device
4. Auto ignition
5. Auto stop when door opens
6. Group sampling
7. Front and rear nitrogen charging
8. When one pump is broken, no filling, the other pumps keep working
Main Parameters of Ampoule Filling Sealing Machine
AGF Ampoule filling sealing machine is mainly used for filling and sealing of pharmaceutical industry B type 1 to 20ml ampoules. Ampoule production line can automatically finish the whole production process: auger feeding, front nitrogen charging (or gas charging), filling, rear nitrogen charging, preheating, sealing and outputting.
Features
1. Auto counting
2. Full servo driven+ceramic pump filling, no bottle no filling
3. S/S Class A laminar flow and protection device
4. Auto ignition
5. Auto stop when door opens
6. Group sampling
7. Front and rear nitrogen charging
8. When one pump is broken, no filling, the other pumps keep working
Main Parameters of Ampoule Filling Sealing Machine
Item | Main Content |
Production Capacity | 10000 to 40000 ampoules/hour |
Applicable Size | 1 to 20ml ampoules |
Filling Precision | 1ml: ±1% |
Bottle Broken Rate | ≤0.2% |
Sealing Pass Rate | ≥99.9% |
No Bottle No Filling Rate | 100% |
PLC, HMI | USA AB |
Servo motor, servo driven | USA AB |
