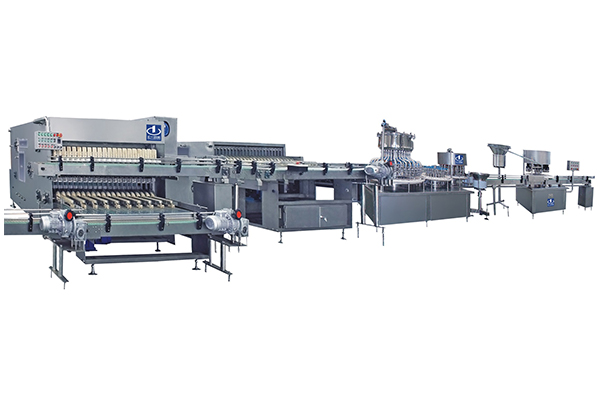

Glass Bottle IV Solution Production Line
Description
Glass bottle IV solution production line is mainly used for IV solution glass bottle of 50ml to 500ml cleaning, filling, stoppering, capping, etc. It can be used for the production of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other liquids.
Flow Chart
Main Features of Glass Bottle IV Solution Production Line
1. Bottle washing machine adopts new design, rough cleaning adopts the same direction for bottle input and output, saving operators and machine space.
2. Bottle output from rough and fine washing machine adopts twice bottle receiving, avoiding bottle reversal and broken.
3. Bottle washing machine uses intermittent rinsing, avoiding cross contamination caused by continuous rinsing.
4. Bottle input adopts the combination of bottle hook and guide plate, making the bottle input reliable and no bottle reversal.
5. Washing water can be recycled and filtered, reduce water consumption.
6. Filling adopts time and constant current theory. Filling quantity can be adjusted by computer with high accuracy.
7. No bottle no filling, can realize CIP/SIP.
Technical Parameters of Glass Bottle IV Solution Production Line
Glass bottle IV solution production line is mainly used for IV solution glass bottle of 50ml to 500ml cleaning, filling, stoppering, capping, etc. It can be used for the production of glucose, antibiotic, amino acid, fat emulsion, nutrient solution and biological agents and other liquids.
Flow Chart
Main Features of Glass Bottle IV Solution Production Line
1. Bottle washing machine adopts new design, rough cleaning adopts the same direction for bottle input and output, saving operators and machine space.
2. Bottle output from rough and fine washing machine adopts twice bottle receiving, avoiding bottle reversal and broken.
3. Bottle washing machine uses intermittent rinsing, avoiding cross contamination caused by continuous rinsing.
4. Bottle input adopts the combination of bottle hook and guide plate, making the bottle input reliable and no bottle reversal.
5. Washing water can be recycled and filtered, reduce water consumption.
6. Filling adopts time and constant current theory. Filling quantity can be adjusted by computer with high accuracy.
7. No bottle no filling, can realize CIP/SIP.
Technical Parameters of Glass Bottle IV Solution Production Line
Main Items | Main Contents | |||
Model | BPY50/500-120 | BPY50/500-200 | BPY50/500-300 | BPY50/500-600 |
Applied Bottle Size | 50ml, 100ml, 250ml, 500ml | |||
Production Capacity | 80 to 120 Bottle/min | 120 to 200 Bottle/min | 200 to 300 Bottle/min | 300 to 600 Bottle/min |
Electric Capacity | 35kW | 37kW | 45kW | 55kW |
Compressed Air Consumption | 4³/h (0.6MPa) | 5³/h (0.6MPa) | 6³/h (0.6MPa) | 7³/h (0.6MPa) |
Water Consumption | Tap water: 200ml/bottle Purified water: 80ml/bottle Injection water: 120ml/bottle 0.2MPa | |||
Overall Size(mm) | 17800 × 6000 × 2300 | 19000 × 6000 × 2300 | 24000 × 7000 × 2300 | 24000 × 7000 × 2300 |
